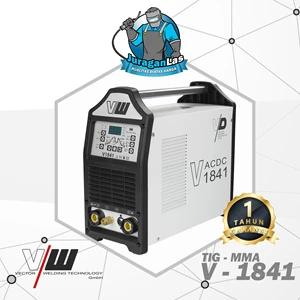

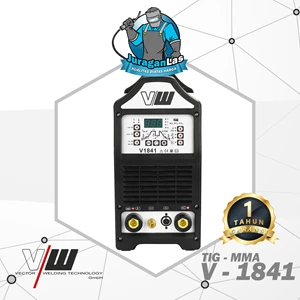

Spesifikasi V-1841 Vector AC/DC TIG Pulse + MMA Welding Machine 180A
Deskripsi Produk mesin las Vector V-1841 :
* Technische Daten ( techical data ) :
Power Source Dimensions : H395mmxW180mmxD375mm
Cooling : Fan Cooled
Welder Type : Inverter Power Source
European Standards : EN 60974-1 / IEC 60974-1
Number of Phases : 1
Nominal Supply Voltage : 220V +/- 15%
Nominal Supply Frequency : 50/60Hz
Welding Current Range (DC STICK Mode) : 10 - 170A
Welding Current Range (DC TIG Mode) : 10 - 180A
Effective Input Current /STICK /TIG : 21.5A/14.8A
Maximum Input Current/STICK/ TIG : 30.4A/20.9A
Single Phase Generator Requirement : 7.5KVA
STICK (MMA) Welding Output, 40oC, 10 min. : 170A @ 35%, 26.8V / 100A @ 100%, 24V
TIG (GTAW) Welding Output, 40oC, 10 min. : 180A @ 35%, 17.2V / 107A @ 100%, 14.3V
Open circuit voltage : 70.0-80.0V DC
Protection Class : IP23S
